Fiber Cable Connect Cabinets

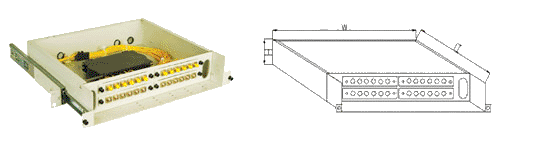

SWK-ZDH-01A Series Fiber Optical Termination Box

Features

  Providing protective connections for optical fibers and distribution pigtails.
  Insulating fiber metal components from fiber-end shells and conveniently leading out grounding  wires.
  Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
  The box can be firmly fixed to prevent against strong shock, thus adapting to different applications of installation.
  Multiple installation methods are available, e.g. wall-mounting, rack-mounting or direct mount in the trough

Specifications

Connectors loss (including insertion ,Changeability and Durability)):≤0.5dB

Additional loss in changeability : ≤0.2dB

Additional loss in durability : ≤0.1dB

Return loss : FC/PC≥40dB, FC/UPC≥50dB, FC/APC≥60dB

Plug-draw life :>1000 times

Order Information
