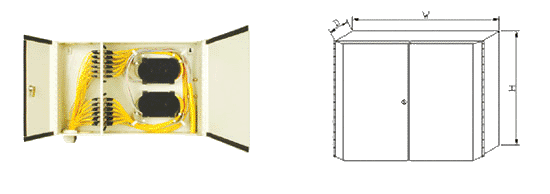

Fiber Cable Connect Cabinets

SWK-GPC-01C

Features

  Cabinets with static-sprayed surface

  Provides 12, 24, 36, 48, 60, 72 optic terminals, and direct connection and coil storing allowed

  Small dimension and convenient operation

  Suitable for inserting adaptors of FC, SC and ST

  Fiber bend radius guaranteed more than 40mm at any place

  Reliable stripping, protecting, fixing and grounding devices for fibers cables

Specifications

Connectors loss (including insertion, Changeability and Durability):≤0.5dB

Additional loss in changeability : ≤0.2dB

Additional loss in durability : ≤0.1dB

Return loss : FC/PC≥40dB, FC/UPC≥50dB, FC/APC≥60dB

Plug-draw life :>1000 times

Order Information
