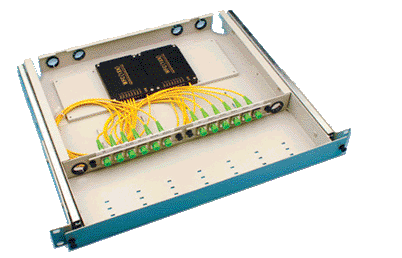

Chassis  Optical  Coupler

¡¡

¡¡

Specifications

¡¡

Type

Parameter

1,2¡Á2

 1,2¡Á4 1,2¡Á8 1,2¡Á16

Operating Wavelength  (nm)

1310 or 1550

Operating Bandwidth (nm)

¡À20

Excess Loss (dB)

¡Ü0.2

¡Ü0.3

¡Ü0.45

¡Ü0.6

Insertion (dB)

¡Ü3.6

¡Ü7.0

¡Ü10.8

¡Ü13.9

Directivity£¨dB£©

¡Ý55

Operating Temperature (¡æ)

-40~85

Fiber Type

Corning SMF-28

¡¡

¡¡

Order Information Click Here
